The use of mechanical equipment is inseparable from the support of fasteners, but in the design of mechanical equipment, almost all designs use hexagon socket screws, whether countersunk or not.
Some friends may be very puzzled, why do so many devices use hexagon socket screws instead of external hexagon screws? What is it good for? Today, Xiaorui will discuss with you, the advantages between external hexagon screws and socket screws disadvantage.

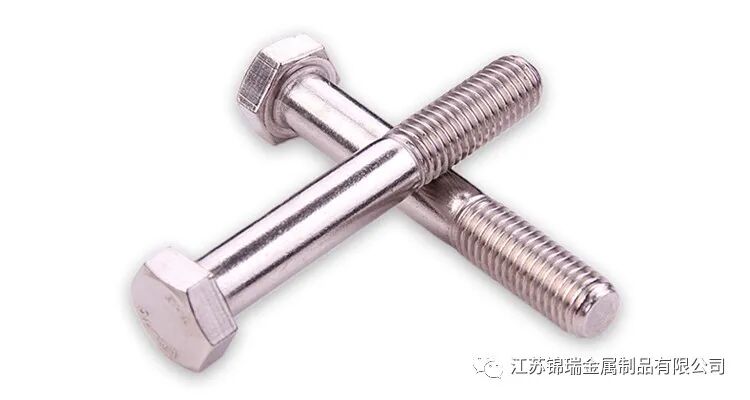

The threads on the outer hexagon bolts are generally ordinary threads with fine teeth and ordinary threads with round teeth.
Hexagon bolts are the most commonly used bolts. A-level and B-level outer hexagons are used more and are more important. And it is used more in occasions where the assembly precision is high, and it is subjected to large shock, vibration or cross rate load. The C-grade outer six or six bolts are used for occasions where the surface is relatively rough and the assembly accuracy is not high.
The advantage of the outer hexagon is that the preload contact area is large, and a large preload can be used. It is generally used in large equipment, and the price is lower than that of the inner hexagon. The disadvantage is that it occupies a large space and cannot be used in countersinking.

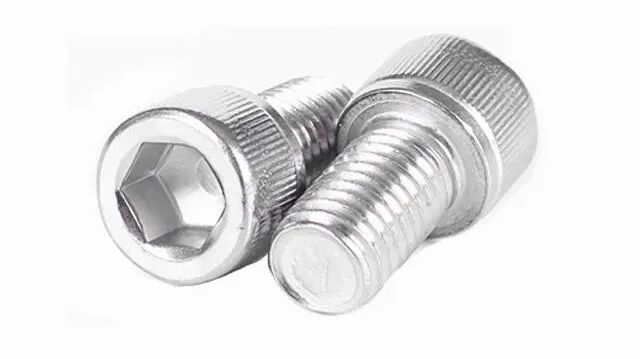

Hexagon socket head cap screws are often used in machinery, and they mainly have the advantages of being easy to tighten, disassemble, and not easy to slip angles. Allen wrenches generally have a 90° turn. One end is long and the other is short. When using the short side to drive the screw, holding the long side can save a lot of force and tighten the screw better. The long end has a round head (a hexagonal cylinder is similar to a sphere) and a flat head, and the round head can be easily removed obliquely, and some parts that are inconvenient to lower the wrench can be installed.
The manufacturing cost of the outer hexagon is much lower than that of the inner hexagon, and its advantages are that the screw head (the force position of the wrench) is thinner than the inner hexagon, and some places cannot be replaced by the inner hexagon. In addition, machines with low cost, low power strength and low precision requirements use much less hexagon socket screws than external hexagon screws.
The advantage of the hexagon socket is that it takes up less space and can be used as a countersunk head. It is generally used on small equipment. The disadvantage is that the preloading contact area is small and cannot use too much preloading force.
So why can hex socket screws be seen in many mechanical devices?
1. Bear more load
Hexagon socket head bolts have six force-bearing surfaces, which are more durable than flat-head screws and cross-shaped screws with only two surfaces.
Note: The material of hexagon socket head cap bolts is generally made of stainless steel, carbon steel, and alloy steel, which is basically the same as that of other types of screws. The higher the performance level, the greater the strength. When choosing screws, you must choose them strictly according to the requirements of use For screws of suitable performance grades, different grades have different prices.
Second, it can be dealt with
The whole nut is sunk into the inside of the workpiece, which can keep the surface of the workpiece smooth and beautiful.
3. Easy to install
Compared with the outer hexagon screw, the inner hexagon is suitable for more assembly occasions, especially in narrow occasions, so it is very convenient to assemble and maintain, and it is also convenient to debug.
Fourth, not easy to disassemble
The tools we usually use are adjustable wrenches, screwdrivers and dead wrenches, etc., and special wrenches must be used to remove hexagon socket bolts, so it is not easy for ordinary people to remove them, which is also a benefit.
